Custom Tungsten Carbide Cold Heading Dies For Cold Heading / Punching Standard Parts
Product Details:
| Place of Origin: | Zhuzhou city, Hunan province, China |
| Brand Name: | Gingte |
| Certification: | ISO9001:2015 |
| Model Number: | Various types |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Kilograms |
|---|---|
| Price: | negotiable |
| Packaging Details: | Inner box+ waterproof outer carton or other packing types as customer's request. |
| Delivery Time: | 7-25 days once get the deposit |
| Payment Terms: | L/C, T/T , Western Union, MoneyGram, E-Checking |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Product Name: | Cemented Carbide Cold Heading Die | Material: | WC+CO |
|---|---|---|---|
| Size: | According Customer's Requirements | Advantage: | Direct Manufacturer |
| Feature: | High Hardness,corrosion Resistance | Usage: | Suitable For Cold Heading And Cold Punching Standard Parts |
| Highlight: | tungsten carbide die,tungsten carbide heading die |
||
Product Description

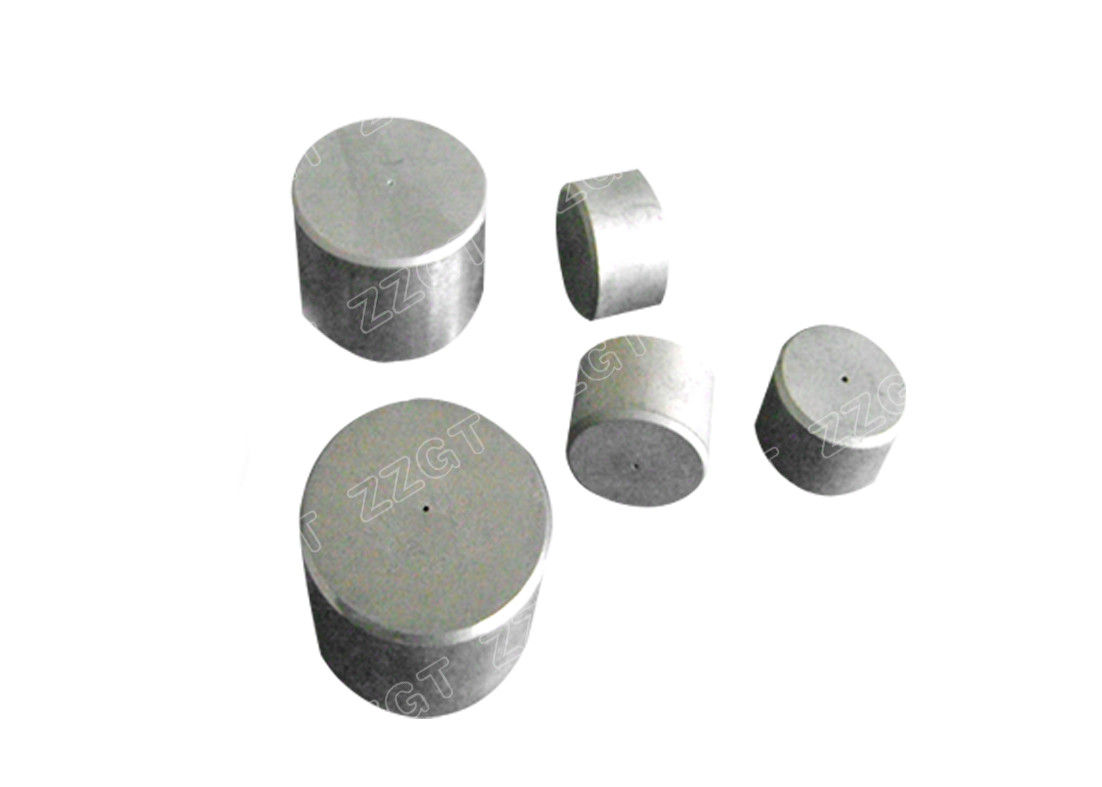

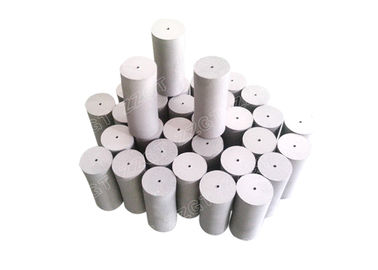

Tungsten carbide cold heading dies for cold heading/punching standard parts
Product Advantage :
1. with tungsten carbide and cobalt powder as raw material.
2. ISO 9001-2008 Quality Control System
3. Stable quality, short delivery time with competitive price
4. High accuracy with long usage lifetime
5. Professional suggestion on tungsten carbide
Quality Guarantee:
Quality guarantee is our duty. Excellent and stable performance is the quality of our products.Fast and timely delivery is our service advantage. Creating value for customers is our management feature. Our quiality control is based on ISO 9001 quality system, By advanced testing quipement , technology and top talents. Our quality control runs through each parts of our management operation.
Grade Performance:
| Tungsten Carbide Cold Forging/heading Dies | ||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended |
| g/cm³ | MPa | HRA | ||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits, cut medium soft and hard rocks; debarking and cutting of frozen wood, soft wood and original wood. |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. |
| YG25C | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
Size Options:
| Type | OD | ID | H | Tolerance | ||
| OD | Id | H | ||||
| φD10~14×φd | 10~14 | 1.0～5.0 | 15～40 | D×+3% | d×-3% | H×+3% |
| φD15~24×φd | 15~24 | 1.5～8.0 | 20～60 | |||
| φD25~40×φd | 25~40 | 1.5～25 | 30～60 | |||
| φD42~95×φd | 42~95 | 2.0～50 | 20～95 | |||
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit.
Our Aim Is To Make Every Customer Satisfied And We Both can achieve WIN-WIN!
