High Durable Tungsten Carbide Cold Heading Dies For Tapping Screw , Long Life
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Grade: | YG15C,YG20C | Material: | Tungsten Carbide |
|---|---|---|---|
| ISO: | K30 | Finished: | Supported |
| Size: | As Customer Requirement | Application: | Punching |
| Advantage: | Durable | ||
| Highlight: | cold forging die,tungsten carbide die |
||
Product Description

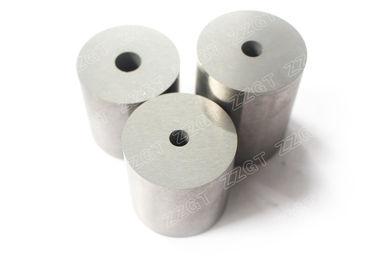

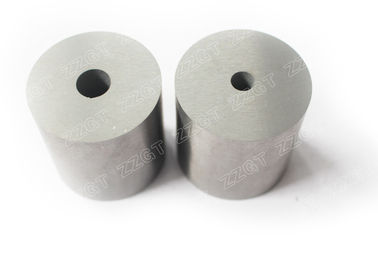

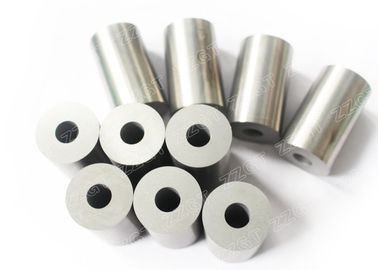

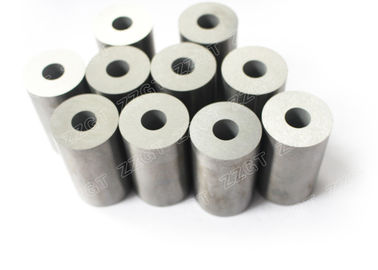

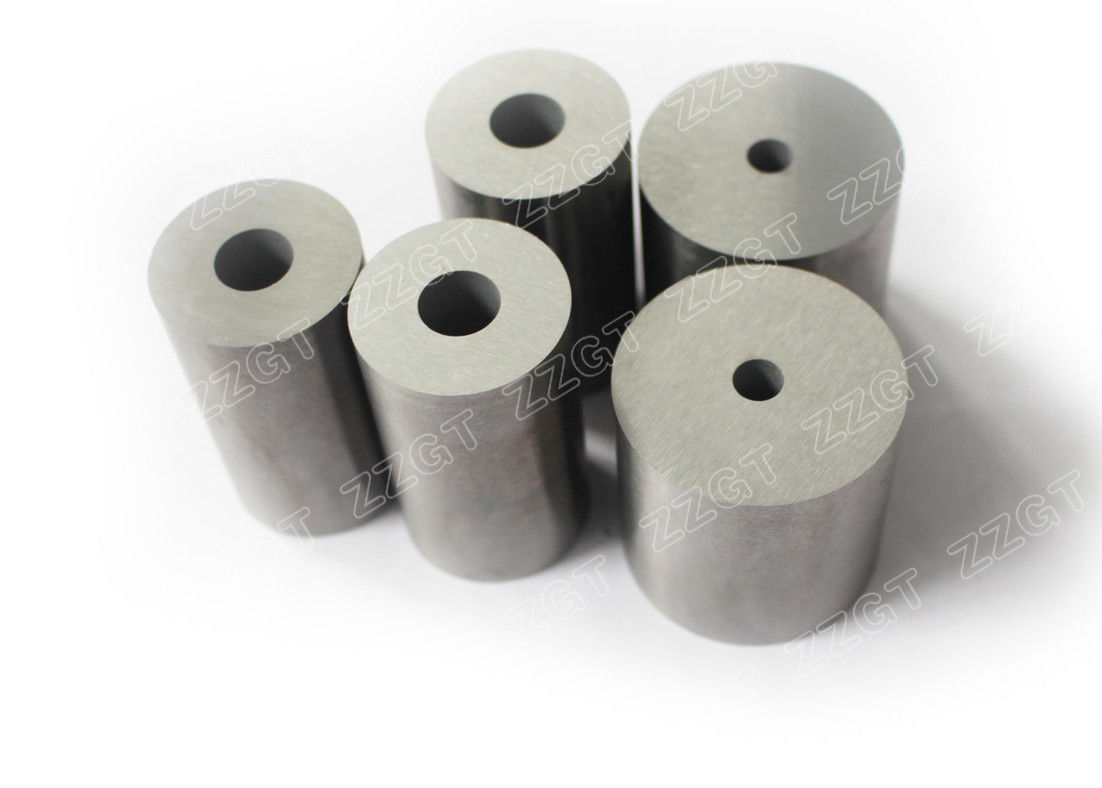

High durable tungsten carbide cold forging die for tapping screw
About Zhuzhou Gingte:
As an affluent manufacturer and supplier, we are instrumental in offering an extensive range of cold forging dies for Fastener Industries. Our offered dies are manufactured using high quality raw material in compliance with the international standards. The offered dies are available in various specifications and can also be customized as per the need of clients. Also, these dies are precisely checked on several quality parameters.
Currently we are suppling in size range of M4 to M24 nutes and bolts
Various Sizes for Options
| Type | OD | ID | H | Tolerance | ||
| OD | Id | H | ||||
| D10~14×φd | 10~14 | 1.0～5.0 | 15～40 | D×+3% | d×-3% | H×+3% |
| D15~24×φd | 15~24 | 1.5～8.0 | 20～60 | |||
| D25~40×φd | 25~40 | 1.5～25 | 30～60 | |||
| D42~95×φd | 42~95 | 2.0～50 | 20～95 | |||
For any other sizes we are able to custom-made according to clients’ requirements or drawings
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
• Dependable cemented carbide with fracture toughnesses for heading and nut forming
• Long wearing cemented carbide grades that meet industry requirements for extrusion applications
• Higher yields resulting from Hyperion's quality cemented carbides
• Higher output with tailor-made tolerance options.
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
*HIP sintering furnace
*Spraying Draying system
*200T TPA acutomatic press machine
*CNC Grinder
*Spark Erosion machine
*Wire cutting machine,etc
