19mm Tungsten Caride Orifice Disc with Solid Type, Tungsten Carbide End Plate
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | φ19*3.3 or others |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Tungsten Carbide | Function: | Wear Part |
|---|---|---|---|
| Chemical Composition: | WC+Cobalt | Application: | For Spraying Nozzle |
| Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air | Smooth Finish: | 1.6 |
| Sintering: | HIP | Sample: | Available |
| Highlight: | tungsten carbide material products,tungsten carbide tools |
||
Product Description
19mm Tungsten Caride Orifice Disc with Solid Type, Tungsten Carbide End Plate
Product Descriptions :
This solid ungsten carbide orifice disc with urable, accurate and long-lasting features, is for high-pressure spraying applications, the high velocity of the liquid through the nozzle causes the orifice to wear very quickly. We offer tungsten carbide orifice,end plate and swirl chamber this full wear parts series for spraying nozzles, have complete sizes and fast delivery.Welcome to contact us for further inquiry : )

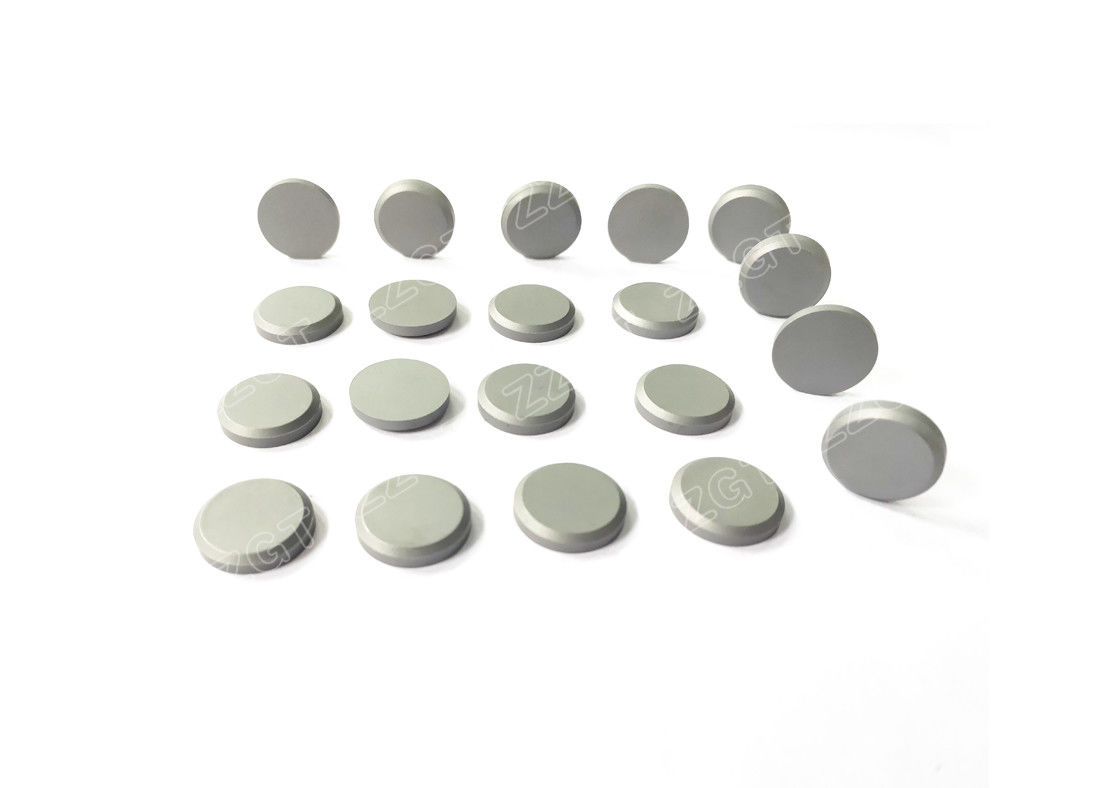

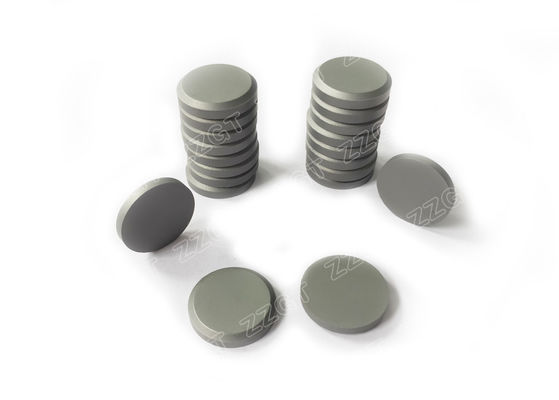

Product Display:
Usage Range:
• Chemical Industry Sparying
• Paint spraying
• Automotive sealants and protective coatings
• Airless paint spraying
• Applying slurry to ceramic tiles
| Product Name | tungsten carbide orifice disc with solid type (end plate) |
| Material | tungsten carbide |
| Size | φ19*3.3 or others |
| Size Tolerance | OD: ±0.2 Thickness: 0~+0.3 |
| Color | as picture |
| Recommend Grade | GF6E ( 92.5HRA ) |
| Grain Size | Fine |
| Application | for Acidic Chemical Spraying |
| Processing Treatment | unground surface |
| Product Features | Wear resistance, High Hardness,Long Lasting |
| Certification | ISO9001 |
Avaialble Sizes:
| Sr No. | Size(mm) | |
| OD | Thickness | |
| 1 | 19 | 2.5 |
| 2 | 19 | 3.1 |
| 3 | 19 | 3.2 |
| 4 | 19 | 3.3 |
| 5 | 19 | 3.4 |
| 6 | 19 | 3.5 |
| 7 | 19 | 3.6 |
| 8 | 19 | 3.7 |
| 9 | 19 | 3.8 |
| ………… | ||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Application (Spraying):
Packing Process:
Packing Details : In cartons,wooden boxes,plastic boxes or customized.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us at your free time when you are interested in our products : )
