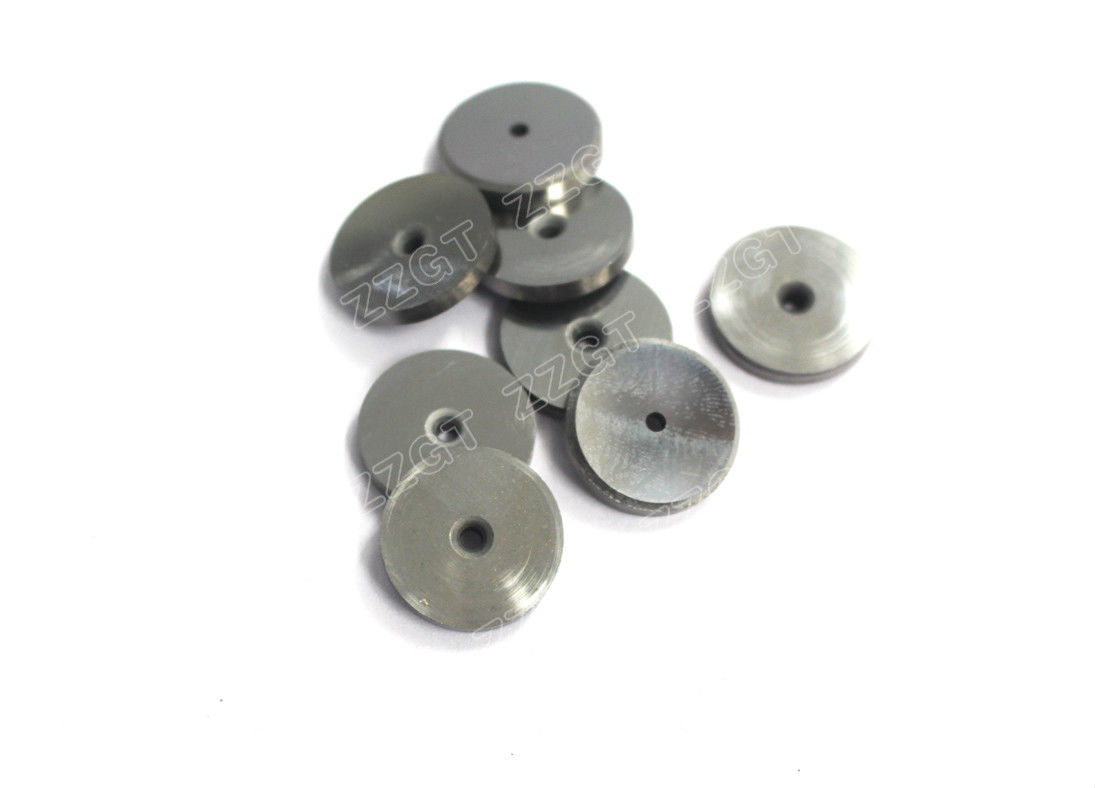

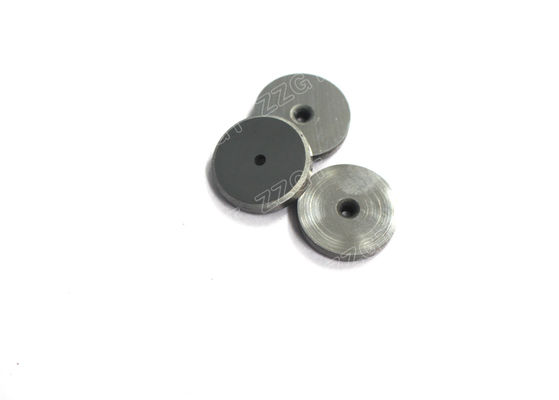

Long Service Life Tungsten Carbide Orifice Disc Tungsten Carbide Products For Nozzle
Product Details:
| Place of Origin: | ZhuZhu , Hunan , China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | YG8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard ecport packing ,or per customer needs |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Quality: | HIP Sintering High Hardness And Wear Resistance | Size: | Various Size And Grade For Choose |
|---|---|---|---|
| Service: | 24-hour Online After-sale Service | Material: | 100% Virgin Tungsten And Cobalt |
| Grade: | Can Design The Best Grade According To Its Applications | Shipments: | Fast Delivery In 7 To 15 Days |
| Highlight: | cemented carbide orifice,tungsten carbide material products |
||
Product Description
Tungsten carbide Nozzles YG8 produced according to the customer's use
About Us :
Zhuzhou Gingte are reputed enterprises in this tungsten carbide industry , manufacturing and supplying a wide range of Tungsten Carbide Swirl Chamber in the worldwide to our most prestigious clients.
Swirl Chamber is used in spray dryer to spray the liquid in the dryer.
We have wide range of size available for Swirl Chamber and orifice. Its manufacture from the best suitable grade of material.
Advantages:
- Material :contains 100% virgin tungsten and cobalt wit submicon grain size
- Quality: long life with super resistance to heat , wear and abrasion
- Technology: can provide the characteristic custom-made
- Grade: can design the best grade according to its applications
- Price: Fast delivery time and excellent cost performance
- packaging: convenient packaging with standard export packing or according the needs of customet's
- shipping terms: FOB CIF C&F Etc by sea or air
- Equipment: Over ten thousand sets of existing non-standard shaped mold
| Product Name | Tungsten carbide orifice |
| Material | cemented carbide |
| Size | OD19, ID various types and thickness 3.3 or as request |
| Size Tolerance | Free tolerance or as customer's request |
| Color | As picture |
| Recommend Grade | YG8 etc |
| Grain Size | Medium Grain |
| Application | Produced according to the customer's use |
| Processing Treatment | Clean ground and polished or as customer request. |
| Product Features | Long life,good versatility,good wear resistance. |
| Certification | ISO9001 |
Grade Performances:
| Grade | ISO Grade | Density | Hardness | T.R.S | Application |
| g/cm3 | HRA | N/mm² | |||
| JT3 | K01 | 15.0 | 91.0 | 1400 | Qualified for fine turning and half fine turning when cast iron,nonferrous metal ,alloys as well as non alloy materials cutting consecutively,Also qualified for sand -blasting nozzles. |
| JT6 | K20 | 14.9 | 90.0 | 2150 | For the cast iron ,nonferrous metal, alloy and unalloyed materials, electric drill for geology use and steel drill ,also process hard wood ,original wood ,aluminum section section bar, brass rod. |
| JT8 | K30 | 14.7 | 89.5 | 2320 | For machine manufacture ,processing blades and wearing parts,rough machineing of cast iron , nonferrous metal ,nonmetal materials at low cutting speed ,also used for hard wood , graphite ,grass. |
| JT11 | K40 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders. |
| JT15 | K40 | 14.0 | 87.5 | 2500 | For punching, stamping,forging tools under large stress,fabricating drawing dies of steel tubes and rods under high compressibility ratio,Powder metallurgy mouldenpress mould core,Cut very hard rock formations. |
| JT20 | 13.5 | 85.5 | 2800 | High bending strength ,used for step dies and other stamping dies ,as for watch parts, battery jars ,small screw caps etc. |
Size Chart :
| Sr No. | Size(mm) | ||
| OD | ID | Thickness | |
| 1 | 19 | 1 | 3.3~3.6 |
| 2 | 19 | 1.6 | |
| 3 | 19 | 1.8 | |
| 4 | 19 | 2 | |
| 5 | 19 | 2.2 | |
| 6 | 19 | 2.3 | |
| 7 | 19 | 2.4 | |
| 8 | 19 | 2.5 | |
| 9 | 19 | 2.6 | |
| 10 | 19 | 2.8 | |
| 11 | 19 | 3 | |
| 12 | 19 | 3.5 | |
| ………… | |||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Packing Process:
Factory Equipment
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
