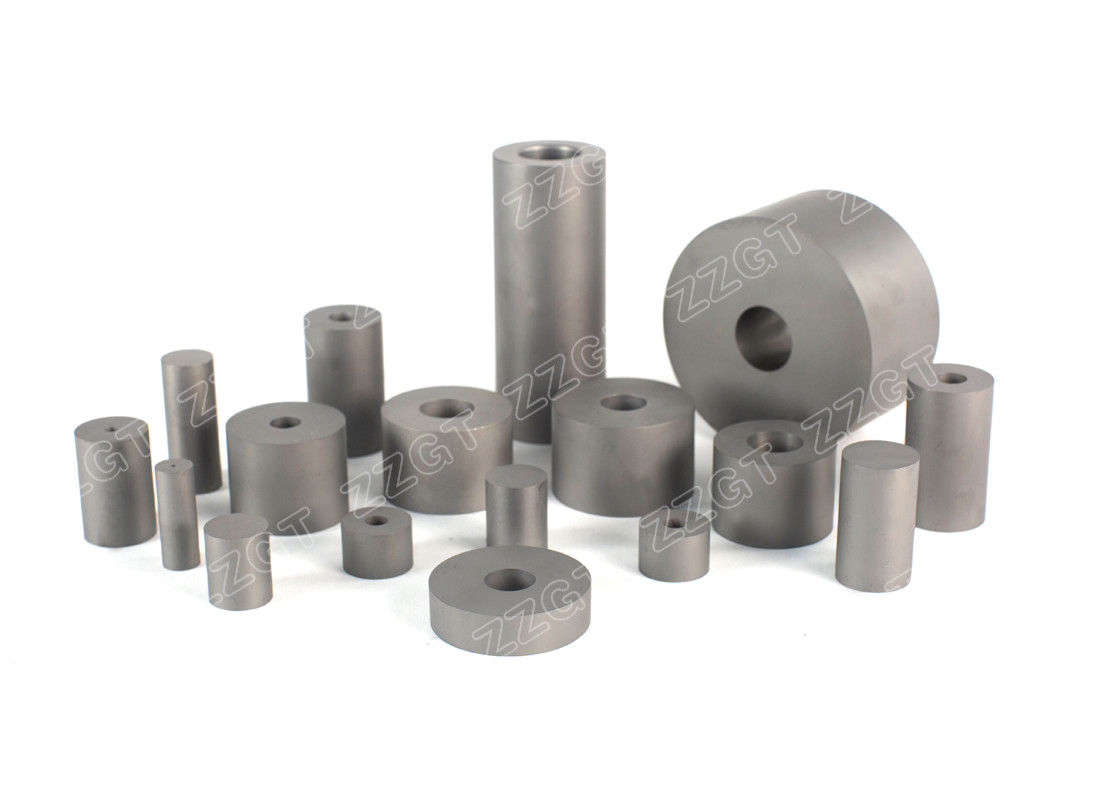

Full Size Tungsten Carbide Pellets Unground Surface Type For Extrusion Dies
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | various sizes for options |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Cemented Carbide | Purpose: | Extrusion Dies |
|---|---|---|---|
| Chemical Composition: | Wc+cobalt | Roughness: | 3.2 Or Others |
| Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air | Grain Size: | 2.4 |
| TRS: | ≥4000 | Density: | 13.3 G/cm³ |
| Concentricity: | 0.4 | ||
| Highlight: | dies for wire drawing,carbide wire drawing dies |
||
Product Description
Full Size Fast Delivery Cemented Carbide Pellets for Extrusion Dies
Product Quick Detail :
1. Product Name: Cemented Carbide Pellets
2. Material: tungsten carbide
3. Size: various sizes or as customer's request
4. Size Tolerance: free tolerance or as customer's request
5. Shape: Round Shape with hole
6. Recommend Grade: YG22C etc
7. Grain Size: Coarse Grain
8. Sintering: HIP sintering
9. Surface Treatment: unground
10. Product Features: wear resistance and impact resistance
11. Certification: ISO9001
Product Descriptions:
Tungsten carbide extrusion dies are pushed during extrusion process, where a slug of material through the nozzle it is a cross-sectional area (based on the shape of the extrusion die). The extrusion process can be carried out at different temperatures (especially desired for the material and the mechanical properties) and for a variety of materials including steel, copper, aluminum, nickel, lead and tin.
Tungsten carbide Extrusion dies are pushed during extrusion process, where a slug of material through the nozzle it is a cross-sectional area (based on the shape of the extrusion die). The extrusion process can be carried out at different temperatures (especially desired for the material and the mechanical properties) and for a variety of materials including steel, copper, aluminum, nickel, lead and tin.
With several years development, our products have been exported to Germany, Italy, Russia, South America,Turkey,India etc. with good quality and competitive prices. Our hard working attitude and responsiveness are approved by our customers. And we would like to establish new business relationships with new customers.
Our Service:
The tungsten carbide extrusion dies are various sizes you can choose, and we can produce products according to your special designs and open mould in accordance with your requirements. Meanwhile there are various grades with different applications, so when you are going to purchase, please do not forget to inform what grade you need or what applications you want. Only in this way, we can judge and quote exactly on time.
Gingte has been specialised in manufacturing extrusion tooling for more than 10 years. We have manufactured extrusion dies and steel case etc, basically including any type of peripheral tools you need for your business extrusion. We have a comprehensive knowledge of planning tools and the know-how to manufacture special high-temperature carbide extrusion dies required. Contact our sales team to discuss your requirements and learn how we can help you extrude superior products, reduce or eliminate rejects and realize true cost savings. In particular, we will help you or beat your expectations of the customer.
Various Grades for Options:
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 |
For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. |
|
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| YG25C | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
Various Sizes for Options:
|
Type |
OD |
ID |
H |
Tolerance |
||
|
OD |
Id |
H |
||||
|
φD10~14×φd |
10~14 |
1.0～5.0 |
15～40 |
D×+3% |
d×-3% |
H×+3% |
|
φD15~24×φd |
15~24 |
1.5～8.0 |
20～60 |
|||
|
φD25~40×φd |
25~40 |
1.5～25 |
30～60 |
|||
|
φD42~95×φd |
42~95 |
2.0～50 |
20～95 |
|||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Performance:
1. High Hardness: 6%-10% Co grade, fine to medium grain size
2. High Strength: 15%-25% Co grade, medium to coarse grain size
3. Good Wear Resistance: Fine to Ultrafine grain size, hardness can reach 92-93HRA
Applications:
Quality assurance:
-
Every production process has a special person to test to ensure quality
-
Have professional engineers to check the quality
-
All products are under strict quality system management based on ISO9001:2008
Why Choose Us ?
1. Proffessional cemented carbide manufacturer over 10 years.
2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.
3. Annual production capacity over 400tons.
4. More than 10000 sets of exisiting non-standard molds,fast delivery!
5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.
6. ISO9001:2008 Quality Management System.
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us at your free time when you are interested in our products : )
