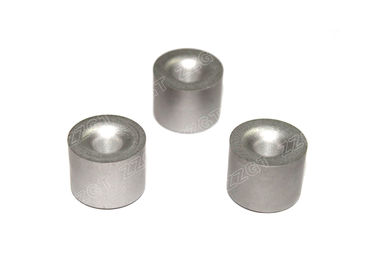

YG8 Tungsten Carbide Pellets Dies For Tungsten / Molybdenum / Tantalum Wires
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | various carbide die sizes |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Tungsten Carbide | Applicatios: | For Steel Drawing |
|---|---|---|---|
| Purpose: | Drawing | Quality: | High Hardness Good Wear Resistance |
| Roughness: | 0.8 Or Others | Shipping Term: | FOB,CIF,C&F Etc By Sea Or By Air |
| Grain Size: | 1.5---2.4 | TRS: | >3200 |
| Highlight: | dies for wire drawing,carbide wire drawing dies |
||
Product Description
YG8 Cemented Carbide Pellets Dies for tungsten wires molybdenum wires tantalum wires tec
Product Advantages :
High-productivity is the character of pellets dies forging characteristics .There are 4 point in this characteristic:
1. material which can be processed
2. machine with high speed
3. mold
4. Excellent worker
The mold decide the shape ,precision and strength of product .We must fully understand the method of pellets dies.The professional worker try their best to find the suitable method for pellets dies.
Product specification:
Carbide wire guide is made of tungsten carbide for its extremely hard and wear-resistant features, with sophisticated equipment for precision grinding and polishing, coupled with advanced production and processing technology, the inner and the outer diameter of the hole and tolerance R at less than 0.01mm, the surface roughness over the trough reached Ra 0.025 and above, it requires high hardness, smooth surface in use to reduce injury and other enameled wire.
Our Service:
We have our own professional mold design tean and has accumulated 10 years of experience.We insist the constant technincal innovation .so we have been walking in front of this field ,Our company are equipment with advanced processing equipment and imported raw materials. we provide the all-weather service to our customer.
Various Grades for Options:
| Grade | Physical and mechanical properties | Applications recommended | ||
| Density g/cm3 | Hardness No Less Than HRA(HV) | TRS No Less Than (Mpa) | ||
| YG6X (K10) | 14.8-15.1 | 91 | 1490 | For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress. |
| YG6 (K20) | 14.7-15.1 | 89.5 | 1650 | For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm. |
| YG8 (K30) | 14.6-14.9 | 89 | 1800 | For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts. |

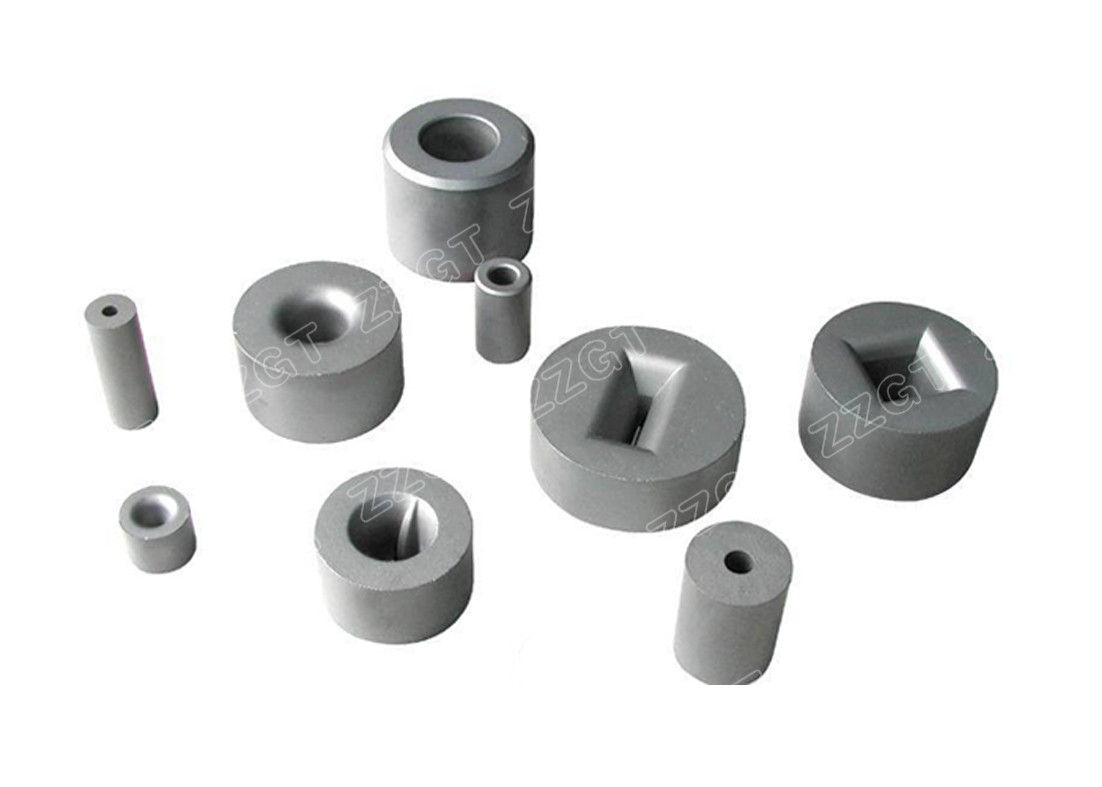

Various Sizes for Options:
| Type | OD | ID | H | Tolerance | ||
| OD | Id | H | ||||
| φD10~14×φd | 10~14 | 1.0～5.0 | 15～40 | D×+3% | d×-3% | H×+3% |
| φD15~24×φd | 15~24 | 1.5～8.0 | 20～60 | |||
| φD25~40×φd | 25~40 | 1.5～25 | 30～60 | |||
| φD42~95×φd | 42~95 | 2.0～50 | 20～95 | |||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Performance:
1. High Hardness: 6%-10% Co grade, fine to medium grain size
2. High Strength: 15%-25% Co grade, medium to coarse grain size
3. Good Wear Resistance: Fine to Ultrafine grain size, hardness can reach 92-93HRA
Quality assurance:
-
Every production process has a special person to test to ensure quality
-
Have professional engineers to check the quality
-
All products are under strict quality system management based on ISO9001:2008
Why Choose Us ?
1. Proffessional cemented carbide manufacturer over 10 years.
2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.
3. Annual production capacity over 400tons.
4. More than 10000 sets of exisiting non-standard molds,fast delivery!
5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.
6. ISO9001:2008 Quality Management System.
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
