Sandblasted Blank Cemented Tungsten Carbide Plate , K10 Tungsten Carbie Blocks
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | 200X200,. 100X100, 200X150 customized size accepted |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Grade: | YN6,YN8,YN11,YN13,YG6,YG8,YG15 | Material: | WC, Cobalt,Nickel |
|---|---|---|---|
| ISO: | K05,K10,K20,K30 | ||
| Highlight: | tungsten carbide block,tungsten carbide sheet |
||
Product Description

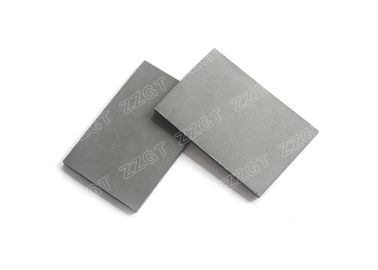

Sandblasted blank Cemented Carbide plates , K10 tungsten carbie blocks
Applications:
Cemented Carbide plates of Zhuzhou Gingte Cemented Carbide Co.,ltd are widely used in mould making field, such as stamping mold,stator rotor core die. They are produced by imported equipment ,using HIP sintering furnace. Cemented Carbide blocks are Checked by ultrasomc testing and can be done fine ground with six face as customers' request.
Mechanical property:
| Grain size | middle grain |
| Hardness | see below table |
| Chemical composition | WC with Co or tungsten carbide with nickel binder |
| Surface Treatment | Polised, Ground or Blank |
Grade Recommendation:
| Grade | Density | T.R.S | Hardness | Performance & Application Recommended |
| g/cm3 | MPα | HRA | ||
| YG6 | 14.9 | 2100 | 90 | or coring crowns,electric coal drill bits,coal cutting picks,oil cone bits and scraping knife bits, usd in geological prospecting, coal mining and oil well boring. |
| YG8 | 14.7 | 2400 | 89.5 | For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
| YG8C | 14.7 | 2450 | 88.5 | Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
| YG9C | 14.6 | 2450 | 87.8 | Suitable to strips, conical buttons for rotary percussion-resistant, geological prospecting buttons, cut soft and medium hard formations. |
| YG10C | 14.4 | 2550 | 87 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
| YG11C | 14.4 | 2600 | 87 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations. |
| YG13C | 14.2 | 2650 | 86.5 | Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations. |
| YG15C | 14 | 2700 | 86.5 | For oil cone drill bits, for medium soft and medium -hard rocks. |
| YG15 | 14 | 2500 | 87.5 | Good strength and less wear resistance,for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks. |

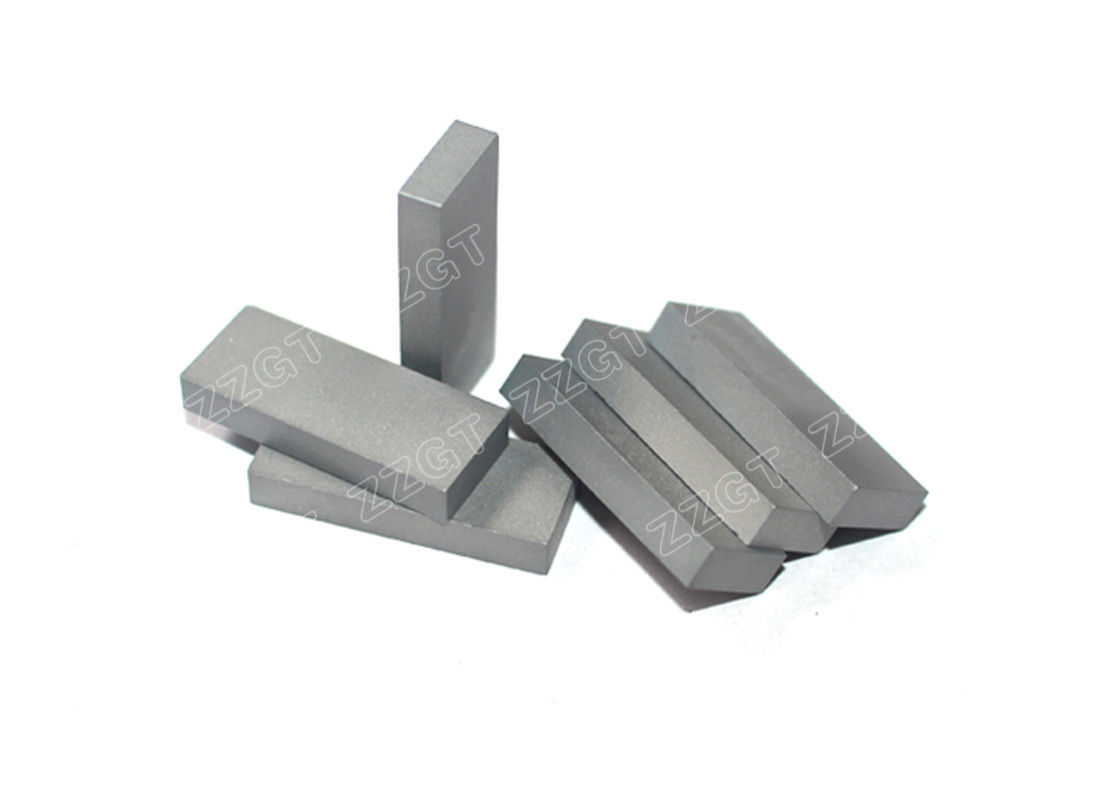

More Photos:
Advanced Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
*HIP sintering furnace
*CIP cold isostatic pressing
*Spraying Draying system
*200T TPA acutomatic press
*CNC Grinder
*Spark Erosion machine
*Wire cutting machine
Quality Control
