Product Description

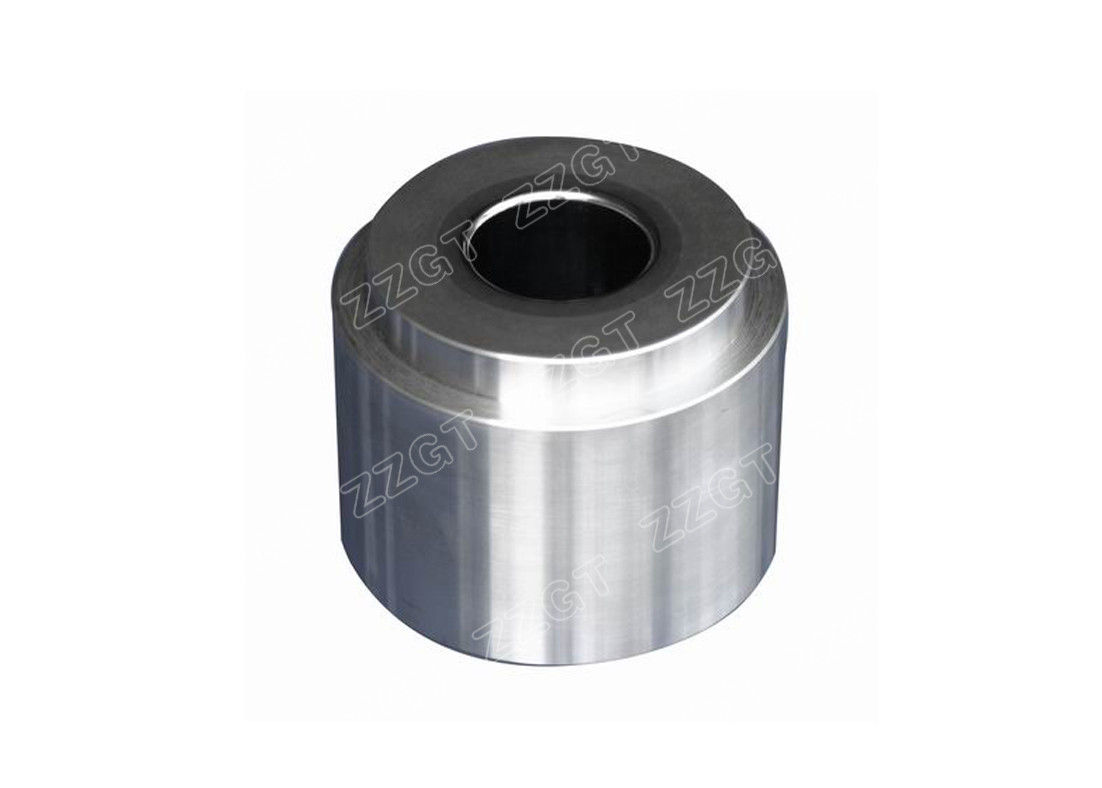

 Tungsten Carbide Die Cemented Carbide Die YG16C Carbide 42CrMo Steel Case



Clean Ground Surface Cemented Carbide Die Round Shape For Mold Industry



Product Descriptions :

Tungsten carbide dies have performance between the tools and construction materials between ceramics and high-speed steel, has a overall performance of high hardness, high strength, high density, corrosion resistance, high temperature oxidation resistance and low coefficient of expansion. Its life expectancy is ten times or even several times over steel. Commonly used tungsten carbide die is cold heading die, drawing die, hexagonal die, spiral mold, etc., Tungsten carbide die is very widely used in the mold industry. And the industry generally uses tungsten carbide cobalt.



We gingte not only produce tungsten carbide blanks,but also provide external steel case and can fix them together with skilled techinique for carbide dies.Can design different shape moulds or according to customer's drawing to make,welcome to contact us for further details of your requirements.



Product Name	Tunsten Carbide Dies
Material	steel case+tungsten carbide
Size	60*30*15*35 or custom-made
Size Tolerance	Finished size or as customer's request
Shape	Roud Shape with one side step
Recommend Grade	YG16C+42CrMo or as customer request
Carbide Grain  Size	Coarse Grain
Application	For Mould Industry
Processing Treatment	Clean ground or Polished etc
Product Features	Long life, good impact resistance
Certification	ISO9001





Carbide Grade Performance:

Tungsten Carbide Cold Forging/heading Dies
Grades	Density	T.R.S	Hardness	Performance & application recommended
	g/cm³	MPa	HRA
YG11	14.4	≥3000	88.5	Forming or stamping dies for metal powders and nonmetal powders.
YG15	14	≥3400	87.5	For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20	13.5	≥3800	85.5	For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C	14	≥4000	86.5	For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C	13.9	≥3500	85.5	Impact resistance forging dies.
YG18C	13.7	≥3600	84.5	Impact resistance forging dies, hot-press forging dies and rollers.
YG20C	13.5	≥3800	83.5	Dies for wear resistant or impact resistant application.
YG22C	13.3	≥4000	83	Nut forming dies and high impact resistance forging dies.
YG25C	13.1	≥4250	82.5	Stainless bolt header dies and rollers.



Steel Case Material:

42CrMo, H13 available or other steel materials.





Size Options:

Type	OD	ID	H	Tolerance
				OD	Id	H
φD10~14×φd	10~14	1.0～5.0	15～40	D×+3%	d×-3%	H×+3%
φD15~24×φd	15~24	1.5～8.0	20～60
φD25~40×φd	25~40	1.5～25	30～60
φD42~95×φd	42~95	2.0～50	20～100

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Applications:





Packing Process:





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.



Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.



Contact us at your free time when you are interested in our products : )
