100% Virgin Tungsten Carbide Seal Rings With High Wear Resistance
Product Details:
| Place of Origin: | Zhunzhou,Hunan, China |
| Brand Name: | Gingte |
| Certification: | ISO9001:2015 |
| Model Number: | Various type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 kilograms |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plastic bag+ inner box+ waterproof outer carton or other packing types as customer's request |
| Delivery Time: | 7-25 days depends on cunstomer's order quantity |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union,e-checking |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | 100% Virgin Material | Color: | Ground |
|---|---|---|---|
| Demension: | Many Sizes | Price: | Cheap Price With Factory Wholesales |
| Grade: | Various Grades And Sizes According To Different Request | Shipping Terms: | EXW,FOB,CIF,C&F Etc. By Sea Or By Air |
| Highlight: | custom tungsten carbide rings,custom made tungsten carbide rings |
||
Product Description

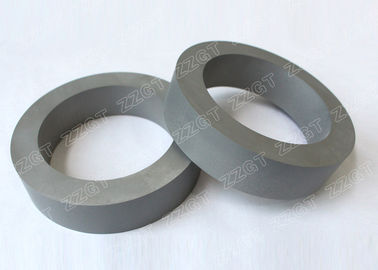

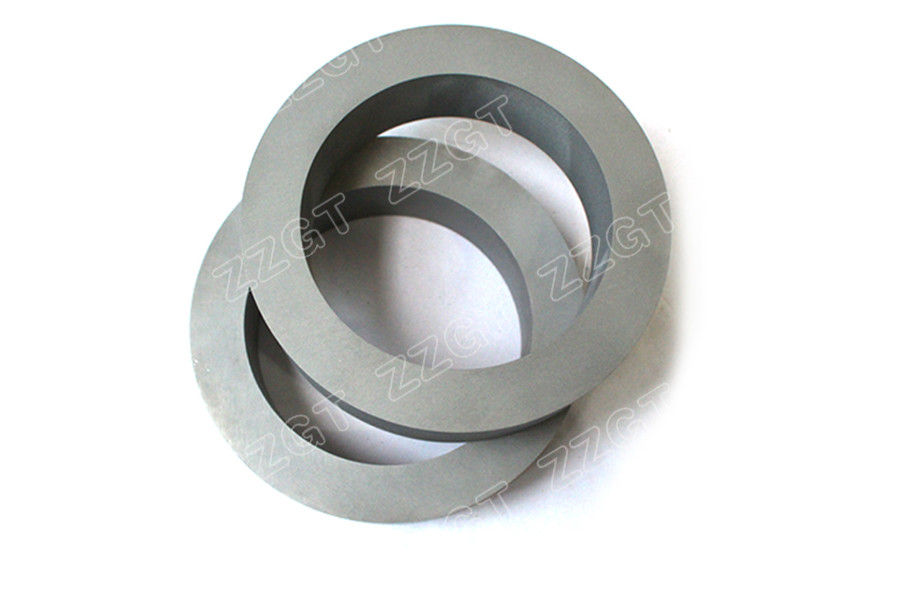

100% Virgin Tungsten Carbide Seal Rings With High Wear Resistance
Product Representation:
Good material, advanced process, stable mechanical properties, high wear resistance and corrosion resistance. We adapt HIP-sintering technology.
Blank and grinding tungsten carbide ring can be supplied.
Why Us?
| Product Name | Tunsten Carbide Roll Ring |
| Material | cemented carbide |
| Size | φ145*φ92*25 or others available |
| Size Tolerance | Free tolerance or as customer's request |
| Color | Gray |
| Recommend Grade | YG6 ,YG10 ,YG15 or others |
| Grain Size | Fine Grain |
| Application | For seal |
| Processing Treatment | Clean ground or polished |
| Product Features | Long life, good impact resistance |
| Certification | ISO9001 |
Grade Performance:
| Tungsten Carbide Roll Ring | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
Size Options:
| Outer Diameter (mm) |
Inner Diameter (mm) |
Thickness (mm) |
| φ90~φ318 | φ3~φ280 | 10~100 |
| … | … | … |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Display and Obvious Advantages:
1. can be HIP sintering to ensure the good performance.
2. various grades and types available according to diffirent working environment request.
3. very good prices provided with discount possible for large quantity.
4. fast production time and delivery time.
5. high precision ground provided.
6. sample order acceptable.
7. Customization is acceptable.
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
